How to flash MBN File using QPST (QFIL) tool: qualcomm

Qualcomm CPU or Chipset can be flashed using QPST tool. Stock ROM comes in MBN extension.

Sponsored

QualComm CPU Flashing is carried out in two phases:-

1- Driver Installation

2- Software Upgrade

Driver Installation:

1- Download and install Qualcomm driver. While installing driver avoid using cable for successful installation.

2- After installation, connect Phone to PC using USB cable.

3- While connecting to PC, phone should be switched off and press volume up & down as boot key.

4- If it makes Qualcomm port, then driver has been successfully installed.

Qualcomm Driver instalation port

Qpst Tool v2.7.453.0 (Latest Version): Download

Software Upgrade:

1- Download the QPST tool & driver.

2- Make sure your device has the Power to support flashing.

3- Run QFIL tool.

QFIL tool

4- Click on Browse under the Programmer path to select MBN File.

QFIL-tool-programmer

MBN File Format:

MBN File Format

5- As soon as the MBN file is selected, Select Build will automatically select the Update or Stock ROM.

6- Click on Load XML, select rawprogram_unsparse_without_qcn.xml and then choose Patch0.xml

Load XML comes with two option:

a- rawprogram_unsparse_without_qcn.xml : On choosing this file, data will not be lost.

b- rawprogram_unsparse.xml : Will lose RF Calibration data, IMEI and WiFi/Bluetooth Address.

Qualcomm-File-format

7- Switch off the device and connect it to PC by pressing Volume up & down key.

8- Click on Select Port and choose the port.

Select-port-Qualcomm

9- Click on Download to start flashing.

Qualcomm-Download

10- Unplug USB cable, when Finish Download appears.

Note: Do not unplug cable when Reset Phone or waiting for Reset Phone is in the process.



Related Posts Plugin for WordPress, Blogger...

  • abhishek

    i had done with rawprogramme-unsparse.xml and network gone is there any chance to bring back the mobile network .pls help me

    • select this file & flash
      rawprogram_unsparse_without_qcn.xml

  • Karan Ch

    Can it will work on Moto G4 Plus?

  • Prashneet Prasad

    Any idea if this trick can work on Samsung Galaxy phones, specifically the S5 that has Qualcomm chipset?

    • for samsung phone you have to use odin tool

      • Prashneet Prasad

        Thanks I was trying that but using the “CP” option I do not get to select the .mbn file extensions, only the .bin files. None of the options in odin allow to select the mbn file.

  • Kamran

    I am not able to find those XML Files for my device Moto G3 Turbo (XT1557). Please help me.

  • yrtythy

    HAI

  • Aakash Bouddh

    moto g4 plus got hard bricked while updating a 40mb security update on nougat..tried flashing “blankflash”via CMD but failed….will this QFIL thing helps unbrick motorola phones.can you plz help me

    • Try out this Video Tutorial on
      How to Flash Moto G4 Plus using ADB
      https://www.youtube.com/watch?v=DJHF8kfthxE

      • Aakash Bouddh

        you dint get me brother…its hard bricked….i cannot even switch it on….when i plug in the charger led blinks thats it

        • is it making port in device manager???

          • Aditya Kumar Singh

            yes bro, it is being detected as qualcomm qs loader something.

          • is it making 9008 port in device manager???

          • Aditya Kumar Singh

            yes bro.. it is being detected as 9008 port in device manager….bro i want to know where to get programm_emmc file (firehose programmer file) and rawprogramm xml file and patch file for moto g4 plus…we are not able to go into fastboot mode.therefore we are not able to flash stock rom using adb fastboot tool. plz help us in unbricking

          • check this tutorial on Moto G4 Plus flashing
            https://www.youtube.com/watch?v=DJHF8kfthxE

          • Aditya Kumar Singh

            bro, we are not able to get into recovery mode(fastboot mode) because our phone got hard bricked. Screen is not turning on bro. We have to use qpst to flash the stock firmware but we are not able to find the required files in the stock firmware.

          • Raja Rama Mohan B
  • Bhuvnesh Tanwar

    Thanks for sharing, looks really promising…Can you please share files for OnePlus 3T ? I have lost MAC address and Bluetooth address, cant make calls also.

  • Bhargav Kumar

    yahoo……. I’m so happy

  • Bhargav Kumar

    love you

  • Bhargav Kumar

    thanks allot

  • Bhargav Kumar

    boss, you made my day, i have lyf wind 1 powered by Qualcomm processor, everyone told me to flash software by browsing for sahara file(sahara.xml), raw program unsparred, patch files. but you are the one who told to power off the device and use both volume buttons before clicking download, that poweroff changed everything and boom….. my device recovered and full happy, thank you so much friend

  • luvasprit

    i need huawei g620-ul01 with fire horse programmer and rowprogrammer file or how i can creat those file any help i appreciate

  • Jovica Brkljac

    Hello,
    Can you please tell me how or where to search for flash files.. for example huawei g630-u20..

  • Suman Chatterjee

    after flashing no batary information so always show 0% level.pls send me the solution

    • share mode no & the file which you had use to flash

  • narotam saini

    earr dikha rha h….
    download fail : switch to DEL failfaild to switch to emergency download mode
    solution dena

    • Either use EDL cable
      or try to connect phone in fastboot mode to Minimal ADB & fastbbot software
      & write command
      Fastboot oem reboot-edl
      and make sure you had install driver

  • Predrag Tošić

    Im having a problem, everything is connected and installed but when i click download the phone screen turns off and in Qfil port is lost. it is lenovo k6 k33a48

  • Tikam Ram Sharma Namo

    I have fleshed through rawprogram_unsparse_.xml and lost data now my phone is not getting network please help how to solve this problem?

    • flash again with appropirate file, it will be ok

      • Tikam Ram Sharma Namo

        I have flesh 5 times but same results. I lost sn number IME number wifi and bluetooth adress. restored all but its not working. I think sn number is not valid

  • christeena kroops

    Hallow,
    I m stuck up with my Lenovo a805e not getting network with any SIM ,No IMEI & Loss of Audio.
    but No local repairer gets idea about what is wrong with mobile. Few said to do software but lenovo
    official store denied of help as this one is manipulated China Version soldby Sprint of America.
    I have tried for weeks insearching and eventually downloaded its ROM from one of china website.
    I tried to learn and flash the Firmware with QRIL but i cannot see an eMMC/ .mbn file into
    Firmware folder for uploading agent.
    What to do ? Will flash be possible ?

    please guide.

  • Amritanshu Ranjan

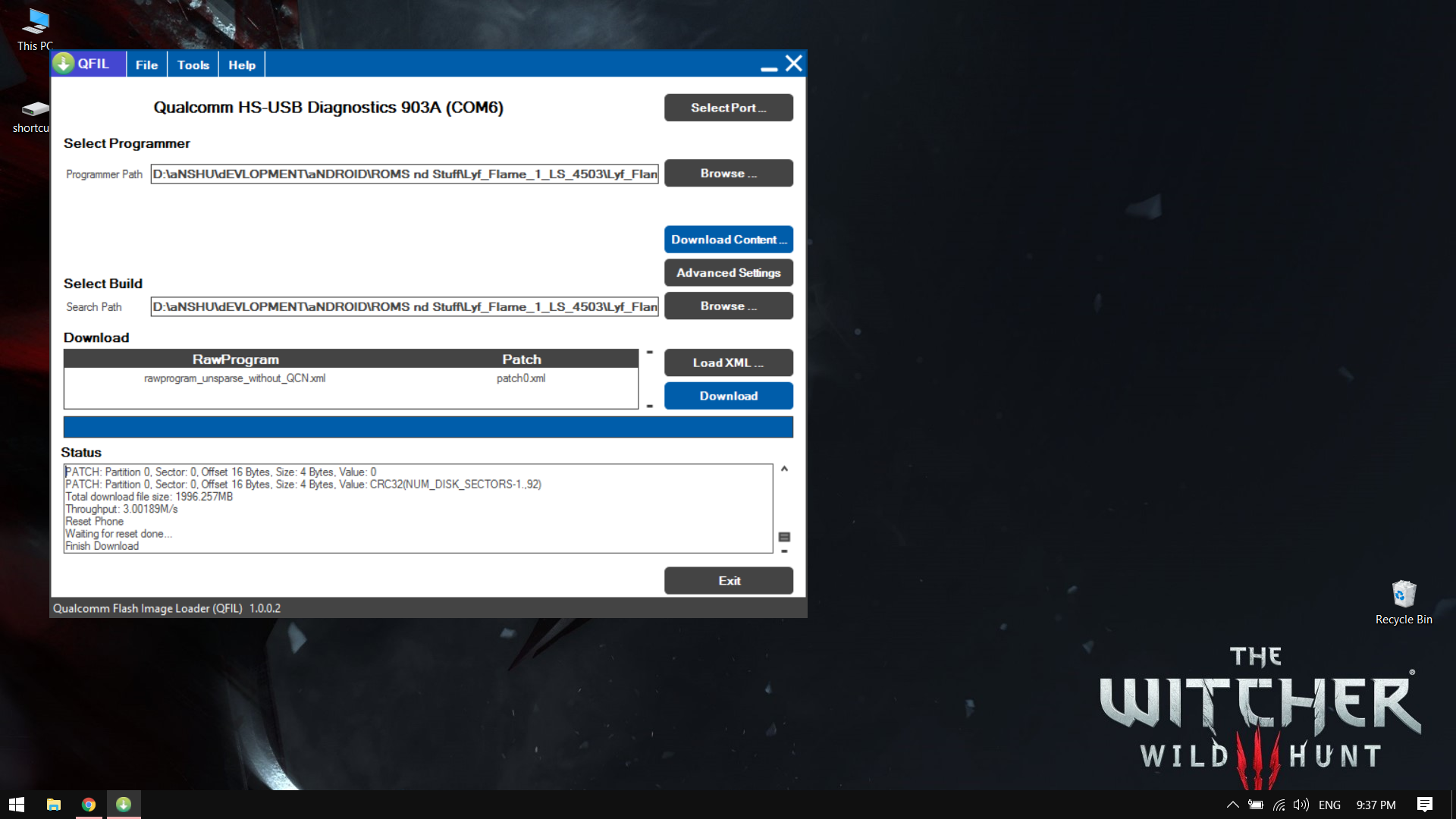

    https://uploads.disquscdn.com/images/979aa2a157438685a165ab0e419b601dd1d79eb3bae4271cddbeecf2b7e2072a.png
